Grey Nylon Material 1 Pair Distribution box for STB Module with VX Module
Quick Detail:
1. Outdoor DP Box Plastic for STB Modules 1pairs
2. Material:Nylon
3. Cable grommets for wire entry and exit is for waterproof.
4. For subscribe connector unit unprotection and protection over voltage and over currence.
5. With snap in lock
6. Application:Ourdoor or indoor
Description:
Outdoor DP Box Plastic for STB Modules 1pairs
Empty distribution box for 1pair dropwire module(STB module),offerring good connection environment for telecommunication.
Material:PC,with steel rails.

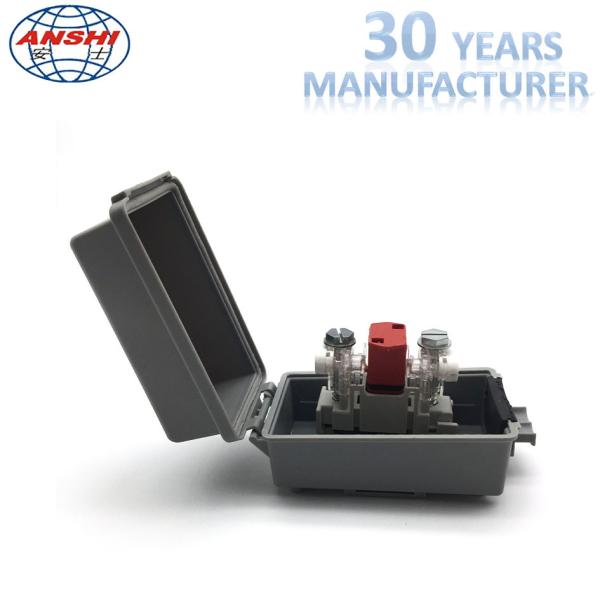

The subscriber connector unit consists of a rectangular box base with a cover and a connection module secured to the base.The top and base are hinged together, and the top is easily removable to facilitate working in cramped conditions.The cable grommets for wire entry and exit may be adjusted to conductor size and are also removable.A metal screw is provided for grounding purposes.
Application for replacing Tyco VX-SB subscribe connector unit terminal blocks,Connecting 1 pair module without protection,module with surge protection (gas-discharge instrument with surge protection to 230V) and module with overvoltage and overcurrent (overvoltage to 230V, and by two resistors PTC, which protect from the overcurrent).
Specifications :
| Mechanical Performance | Plastic material: Nylon |
| Contact material: Phosphor Bronze. |
| Surface Plating Silver(0.5um-5um) |
| Earth bar: Phosphor Bronze.Surface Plating nickel |
| Environment Characteristic | Storage Tempreture: 40 to 70°C |
| Operating Temperature : 10 to 60°C |
| Relative Humidity: 95%, noncondition |
| Electrical Performance | Insulation resistance: 1000 Mohms minimum |
| Contact resistance :5 mohms maximum |
| Dielectric intensity: 1200V DC 60s can't spark over and haven't fly arc |
